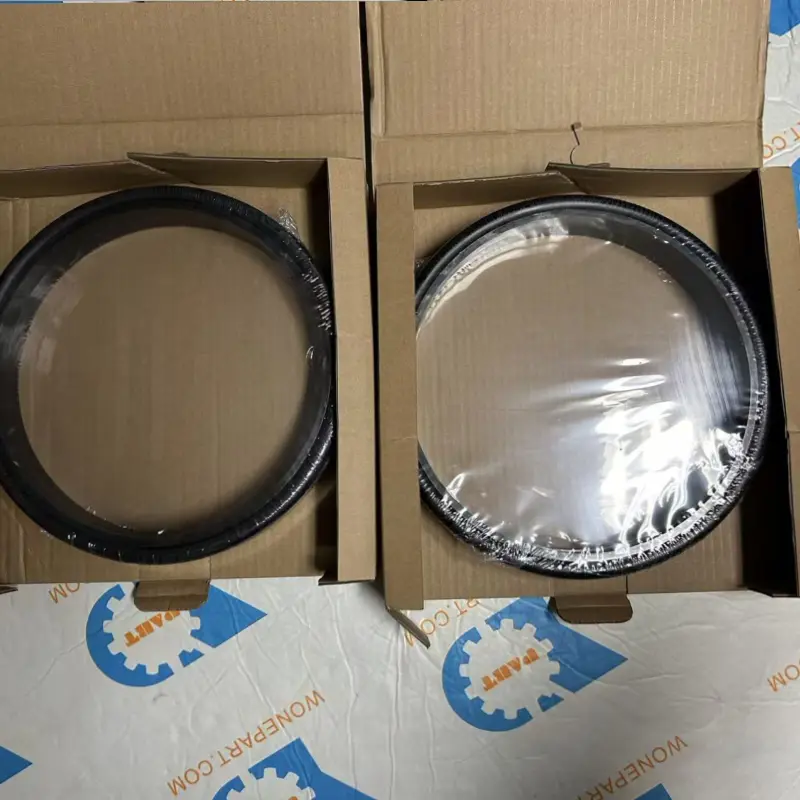

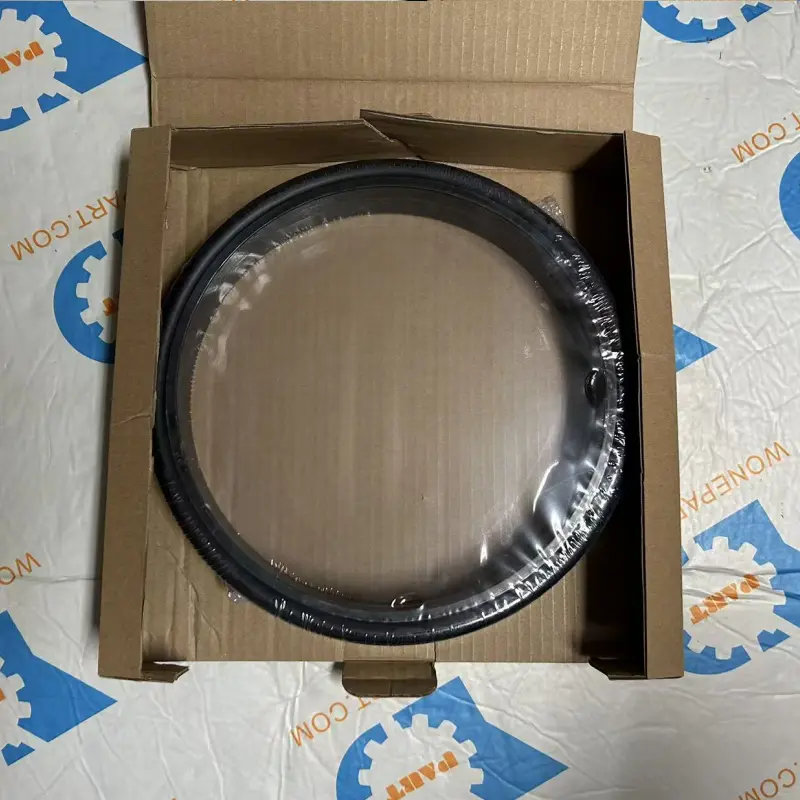

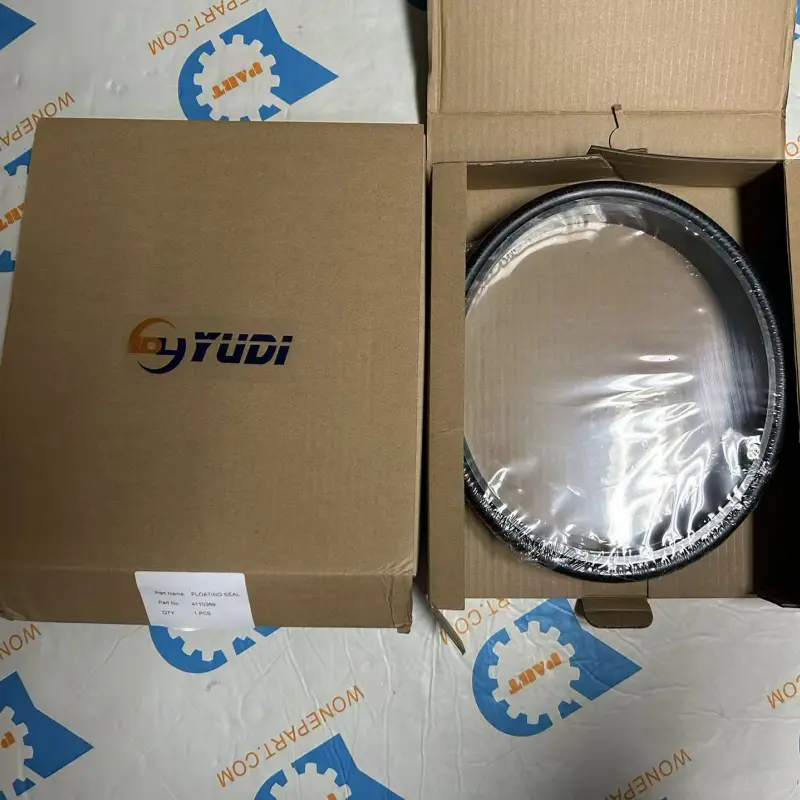

Floating Seal: The "Sealing Armor" for Construction Machinery in Extreme Conditions

In the drive systems of heavy-duty equipment such as excavators, bulldozers, and mining dump trucks, floating seals (also known as duo cone seals or mechanical face seals) are core sealing components that protect slewing bearings and final drives. With a unique dual-ring floating structure, they provide long-lasting, maintenance-free sealing protection for equipment in harsh environments of mud, gravel, and high-pressure impacts, becoming an irreplaceable "sealing armor" for heavy-duty machinery.

1. Structure & Composition: A "Rigid-Flexible Combination" with Precision Coupling

• Metal Seal Ring: Forged or cast from high chromium-molybdenum alloy cast iron (15% chromium, 1-3% molybdenum) or high-carbon steel (100Cr6/Gcr15), with a hardness of HRC 58-72. The sealing surface is precision-lapped with a roughness of Ra≤0.2μm and flatness ≤0.0015mm, offering excellent wear resistance, corrosion resistance, and impact resistance.

• Elastomer O-Ring: Available in NBR, HNBR, FKM (Viton), VMQ materials, adapting to different temperatures and media. It provides elastic preload and enables radial and axial floating compensation.

• Type Classification: Mainly divided into DO type (O-ring) and DF type (diamond ring), suitable for different installation grooves and working conditions.

2. Working Principle: "Sealing Wisdom" with Dynamic Adaptation

1. Dynamic Floating Compensation: Under equipment vibration, shaft eccentricity, or axial movement, the metal ring floats radially/axially under the elasticity of the rubber ring, automatically compensating for deviations (maximum compensation angle ±1.5°) and maintaining tight sealing surface contact to prevent leakage.

2. Micron Oil Film Sealing: A 0.01mm-level uniform oil film forms on the rotating end face, reducing friction and wear while creating a "liquid barrier seal" that blocks external sand, mud, and water ingress and prevents internal lubricant leakage.

3. Self-Cleaning Effect: During equipment operation, the oil film carries tiny particles away from the sealing surface, avoiding abrasive wear and extending service life.

3. Core Performance Advantages: Five Breakthroughs Surpassing Traditional Seals

3.1 Superior Wear Resistance & Long Service Life

• High hardness metal ring (HRC 58-72) + precision-lapped end face, wear resistance increased by 5x+;

• Service life reaches 4,000-8,000 hours under standard conditions, and 12,000-15,000 hours in mining/tunneling conditions, over 10x longer than traditional lip seals (400 hours).

3.2 Extreme Condition Adaptability: Temperature & Pressure Resistance

• Working Pressure: Conventional 0.15-0.3MPa, special high-pressure models up to 3MPa, withstanding 80kN axial impact load;

• Temperature Range: NBR (-40℃~100℃), HNBR (-30℃~130℃), FKM (-10℃~200℃), adapting to extremely cold/high-temperature scenarios;

• Contamination Resistance: Operates continuously for 3,000 hours in mud with 15% solid particles without leakage, complying with ISO 6194 standards.

3.3 Automatic Compensation & Maintenance-Free Design

• Floating design automatically compensates for shaft runout, eccentricity, and sealing surface wear, maintaining stable sealing performance long-term with full-life maintenance-free operation;

• Labyrinth-type oil reservoir structure enables one-time oil filling for lifelong lubrication, significantly reducing maintenance costs and downtime.

3.4 Compact Structure & Easy Installation

• Integrated design with small size and low space occupation, suitable for limited installation spaces;

• Paired installation without complex tools, enabling quick assembly/disassembly and reducing labor costs.

3.5 Cost-Effectiveness & Efficiency Improvement

• Long service life + low failure rate, reducing replacement frequency and spare parts inventory;

• Avoids bearing/gear damage caused by sealing failure, lowering overhaul costs and improving equipment availability.

4. Key Technical Specifications

5. Typical Applications

• Construction Machinery: Track rollers, carrier rollers, idlers, drive wheels, final drives, swing motors of excavators, bulldozers, loaders, motor graders, and road rollers;

• Mining Equipment: Wheel hubs, reducers, and main bearings of mining dump trucks, tunnel boring machines, shearers, and scraper conveyors;

• Agricultural Machinery: Axles and gearboxes of tractors, plows, and mowers;

• Large Infrastructure & Stadium Projects: WONEPART floating seals and supporting construction machinery parts were supplied in bulk for the construction of Qatar World Cup Lusail Stadium and Al Thumama Stadium. Operating stably in the high-temperature and heavy sand environment of the Middle East, they ensured continuous operation of excavators, hydraulic breakers, and loaders, supporting the on-time delivery of the world-class project.

• Other Equipment: Low-speed heavy-duty rotating components such as conveyors, mixers, and wind turbine pitch bearings.

6. WONEPART Strength & After-Sales Support

• Proven World Cup Project Experience: During the construction of the 2022 Qatar World Cup Lusail Stadium, WONEPART provided high-temperature resistant, wear-resistant floating seals and complete sealing solutions for China Railway Construction Corporation and other contractors. Under extreme high temperatures of 50℃+ and heavy sandstorms, our products achieved zero leakage, long service life, and maintenance-free operation, ensuring equipment availability and earning high recognition from the project owner.

• Full-Range Parts Support: In addition to floating seals, we also offer hydraulic breaker seal kits, O-rings, engine parts, hydraulic pump parts, undercarriage parts (track rollers, idlers, drive wheels) and other full-range construction machinery parts, meeting customers’ procurement needs in one stop.

• Strict Quality Control: Full-process inspection from raw materials to finished products, 100% factory pressure testing, compliance with ISO, JB/T and other international/industry standards, and 18-month warranty.

• Professional After-Sales System: Our global technical team provides selection guidance, installation training, fault diagnosis, and quick replenishment services with 24-hour response, ensuring customers’ equipment worry-free operation and cost reduction & efficiency improvement.
