H1: Types, Performance Parameters & World Cup Large Infrastructure Application of Construction Machinery Chain – Wonepart Heavy Track Link Manufacturer Direct Supply

1. Full Classification of Construction Machinery Chain

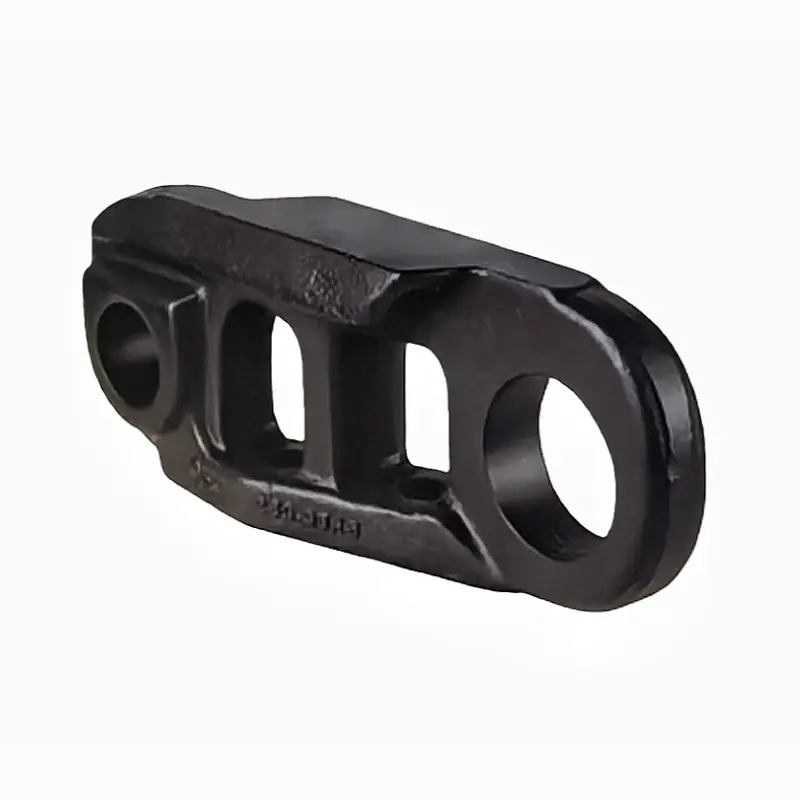

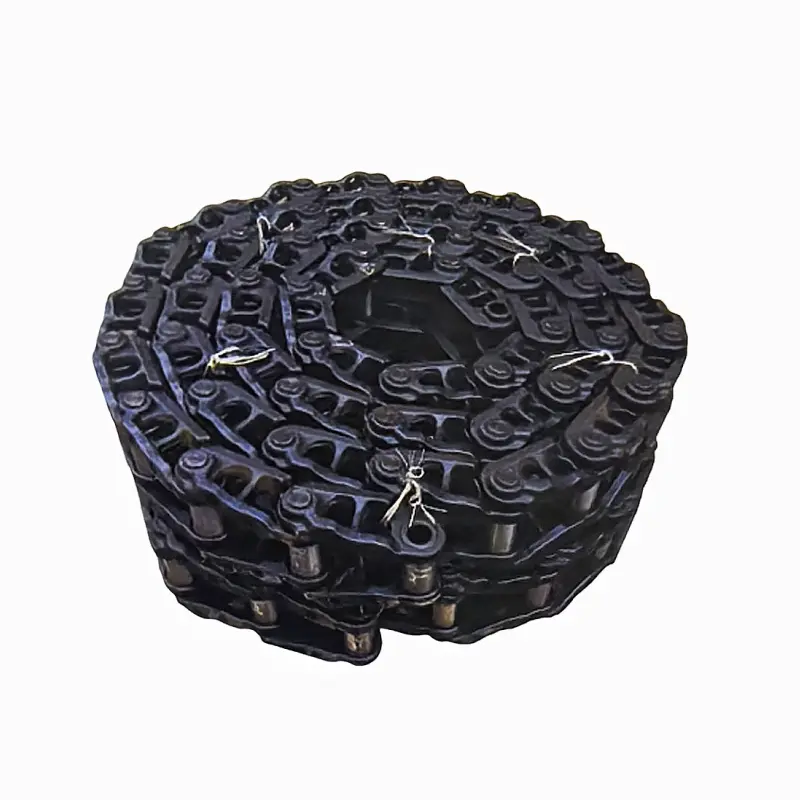

1. Excavator Track Link Assembly

   Fit mini, medium and large excavators from 6 ton to 60 ton, divided into dry track chain and sealed oil lubricated track chain. Compatible with CAT, Komatsu PC series, Hitachi EX, Sany, XCMG all original models, serving as the core load-bearing undercarriage spare parts of construction machinery.

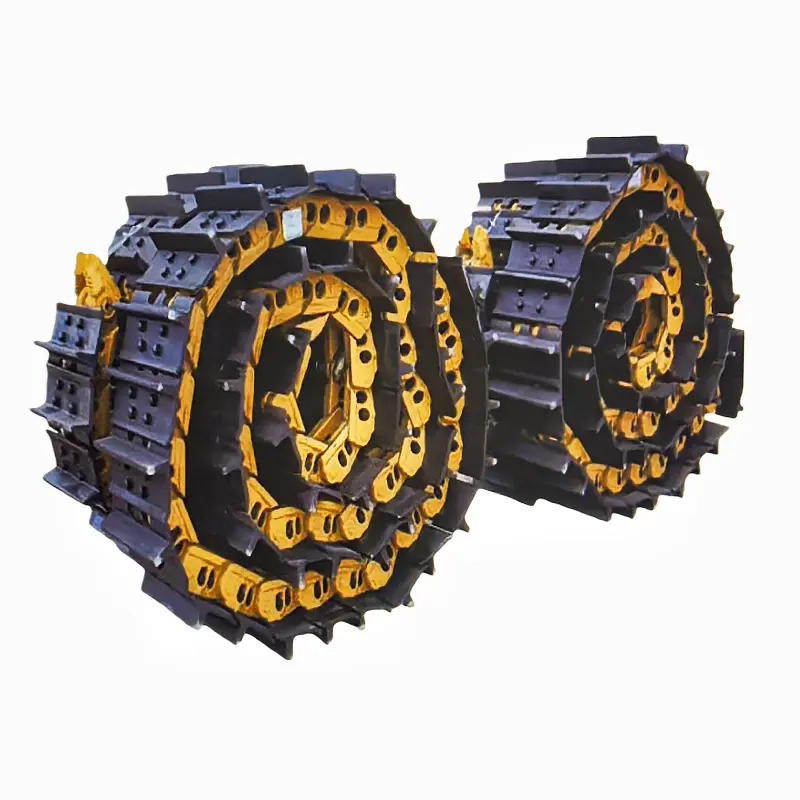

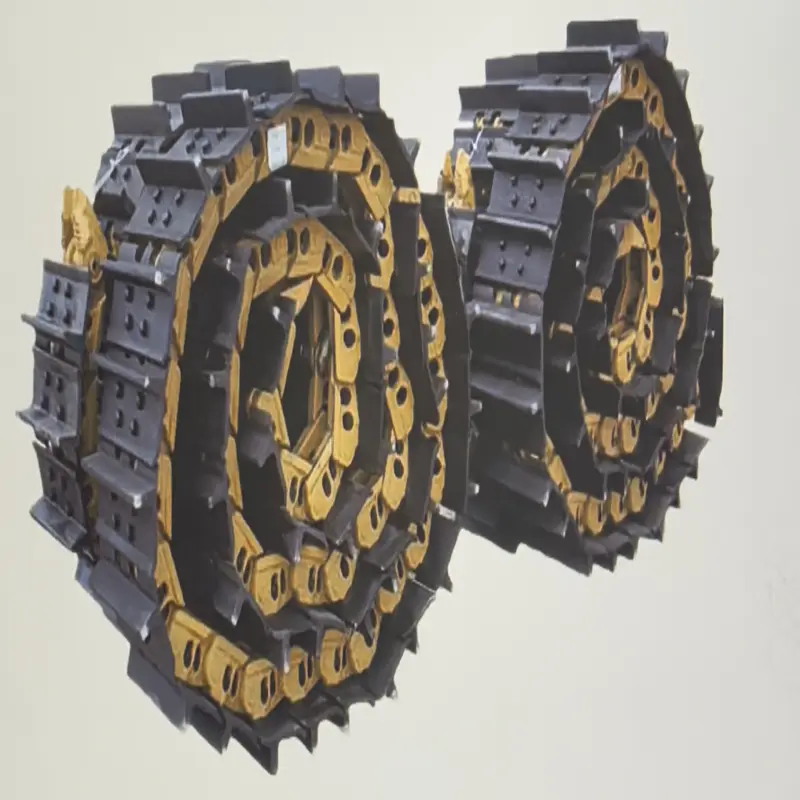

2. Bulldozer Heavy Track Chain

   Customized for swamp, rock and standard working conditions, D6/D8/D9/D10/D11 heavy oil lubricated track link with thickened link plate and thick track pin. Shock resistant & anti-deformation, perfect for mining, earthmoving and large site leveling projects.

3. Track Chain for Loader & Skid Steer Loader

   Short pitch lightweight high strength design, balancing flexibility and load capacity, ideal for municipal road construction and auxiliary World Cup venue building.

4. Heavy Duty Track Link for Rotary Drilling Rig & Crawler Crane

   Ultra-long fatigue life and ultra-high tensile strength, stable under long-term continuous heavy load & large inclination operation.

5. Construction Machinery Transmission Roller Chain

   High strength heavy roller chain & leaf lifting chain for hydraulic, traveling and winch power transmission, fully compliant with ISO & ANSI international standards.

6. 2. Material, Core Performance & Standard Technical Parameters of Wonepart Construction Machinery Chain

7. 2.1 Raw Material (Core Factor of Wear Resistance, Tensile Strength & Fatigue Resistance)

• Track link body: Forged alloy steel 35MnB, 40Cr, 20Mn2A, much better toughness than ordinary carbon steel, avoid sudden fracture under heavy load.

• Track pin & bushing: Carburized high carbon alloy steel, high hardness surface & impact resistant core.

• Sealing components: High pressure mud resistant oil seal, IP69K dustproof & waterproof, suitable for muddy, gravel and mining harsh working environment.

9. 2.2 Key Performance Indicators

1. Hardness Standard

   Surface medium frequency quenching hardness of track link: HRC48–56, hardening depth 6–12mm;

   Track pin & bushing surface hardness: HRC52–58, hardening depth 3–6mm;

   Smooth hardness gradient to prevent surface peeling and early wear cracks.

2. Mechanical Load Performance

   Minimum tensile strength ≥1000MPa, 1.2 times higher than ISO standard;

   Pass 1 million fatigue impact tests under 2 times rated load without cracks;

   Service life increased by 40% compared with ordinary Chinese track chain, sealed oil track chain can reach 4000 working hours under normal conditions, 2000 hours official warranty.

3. Dimensional Precision

   Pitch tolerance ±0.3mm, track pin diameter tolerance ±0.05mm, prevent crawler deviation & excessive elongation during operation;

   All products follow ISO7452, DIN8187, SAE J759 international undercarriage standards, direct replacement for OEM original track link assembly.

4. Working Condition Adaptation

• Sealed oil lubricated track chain: Built-in long-lasting grease, no frequent refueling, anti-sand abrasion, best choice for long-term continuous engineering projects like World Cup stadium construction;

• Dry track chain: Cost-effective, suitable for short-term municipal & temporary site construction;

• Reinforced mining type: Thickened & widened link plate, anti-impact & anti-deformation on rocky ground.

12. 2.3 Universal Standard Specifications

• Komatsu PC200 excavator track chain: 45 links, standard weight 520kg, pitch 190mm, match 20-ton medium earthmoving machine;

• D8N bulldozer heavy track link: Pitch 216mm, single link max load 50 ton, special for large venue earth leveling;

• 6-ton mini excavator track chain: Pitch 101mm lightweight design, no ground damage for indoor stadium construction.

14. 3. Real Application Case: Wonepart Track Chain for 2026 World Cup Main Stadium Infrastructure Project

15. During the renovation & new construction of multiple main stadiums for 2026 World Cup USA-Mexico-Canada, a large number of earthmoving, lifting and leveling heavy machines were uniformly equipped with Wonepart heavy duty construction machinery track chain, as core undercarriage spare parts for venue engineering.

1. Difficult Working Conditions of World Cup Stadium Project

   Tight construction schedule with 24-hour shift operation; mixed construction site with gravel, concrete debris & muddy foundation pit. Ordinary track chain suffers rapid wear, elongation and pin bushing jamming, causing long machine downtime and delaying stadium delivery.

2. Wonepart Track Chain Custom Solution for This Project

   The general contractor purchased bulk Wonepart sealed oil lubricated track link assembly, made of 35MnB forged alloy steel with deep carburizing heat treatment technology, featuring superior wear resistance & low elongation rate. All Wonepart track chains passed 100,000 dynamic impact fatigue test before delivery, supporting full-day high-intensity construction of excavators, bulldozers and rotary drilling rigs.

3. Project Operation Result

   The full set of Wonepart construction machinery track chain worked continuously for 3200 hours in stadium construction without major overhaul. Track elongation rate is far lower than industry average, machine maintenance downtime reduced by 65%, ensuring on-time completion of World Cup main stadiums.

4. Long-Term Customer Recognition

   Overseas general engineering contractors keep repeat orders of Wonepart track link assembly, and specify Wonepart undercarriage spare parts for subsequent large event venues, municipal infrastructure and mining projects, fully proving the advantages of Wonepart track chain: high tensile strength, long service life & reliable performance under extreme heavy engineering working conditions.

17. 4. Core Advantages of Wonepart Construction Machinery Chain

1. Full model coverage: One-stop supply of track chain for excavators, bulldozers, rotary drilling rigs and crawler cranes, support OEM customized size;

2. Strict quality inspection: Triple factory test including ultrasonic flaw detection, magnetic particle crack inspection and bench fatigue test;

3. Foreign trade friendly: Fumigated seaworthy anti-rust packing, support bulk wholesale & long-term supply for overseas engineering projects;

4. Cost-effective: Factory direct supply without middleman, tiered discount available for large infrastructure project bulk orders.

5.


19. 5. FAQ

1. Which one to choose: sealed oil track chain or dry track chain?

   For long-term continuous construction, mining and large venue projects such as World Cup stadiums, Wonepart sealed oil lubricated track chain is the priority choice with lasting lubrication & lower wear. Dry track chain can cut cost for small short-term municipal projects.

2. Which machine brands can Wonepart track chain fit?

   Compatible with all series excavators & bulldozers of CAT, Komatsu, Hitachi, Sany, XCMG, Shantui, support OEM replacement of original undercarriage track link assembly.

3. What is the service life of heavy construction machinery track chain?

   Wonepart wear resistant alloy track chain lasts 4000 working hours under standard conditions, field test shows 3000 hours without severe abrasion under World Cup heavy continuous operation, with 2000 working hours official warranty.
